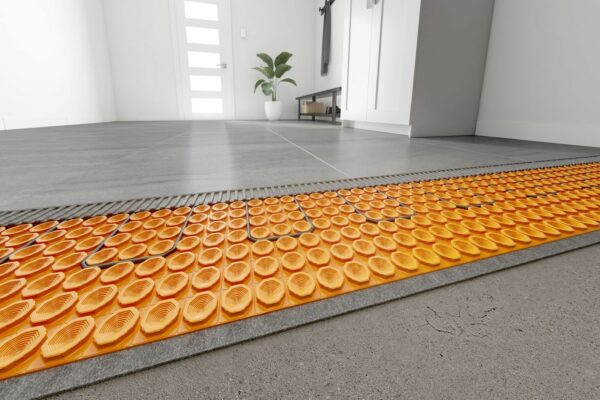

Schluter®-DITRA-HEAT-PS is a peel-and-stick membrane with a pressure-sensitive adhesive (PSA) that bonds directly to the substrate, eliminating the need for thin-set mortar. Quick to install and easy to handle, DITRA-HEAT-PS combines customizable electric floor heating with the same benefits as DITRA-HEAT: uncoupling, waterproofing*, vapor management, and load support to provide a durable, long-lasting tile installation.
Product Features:

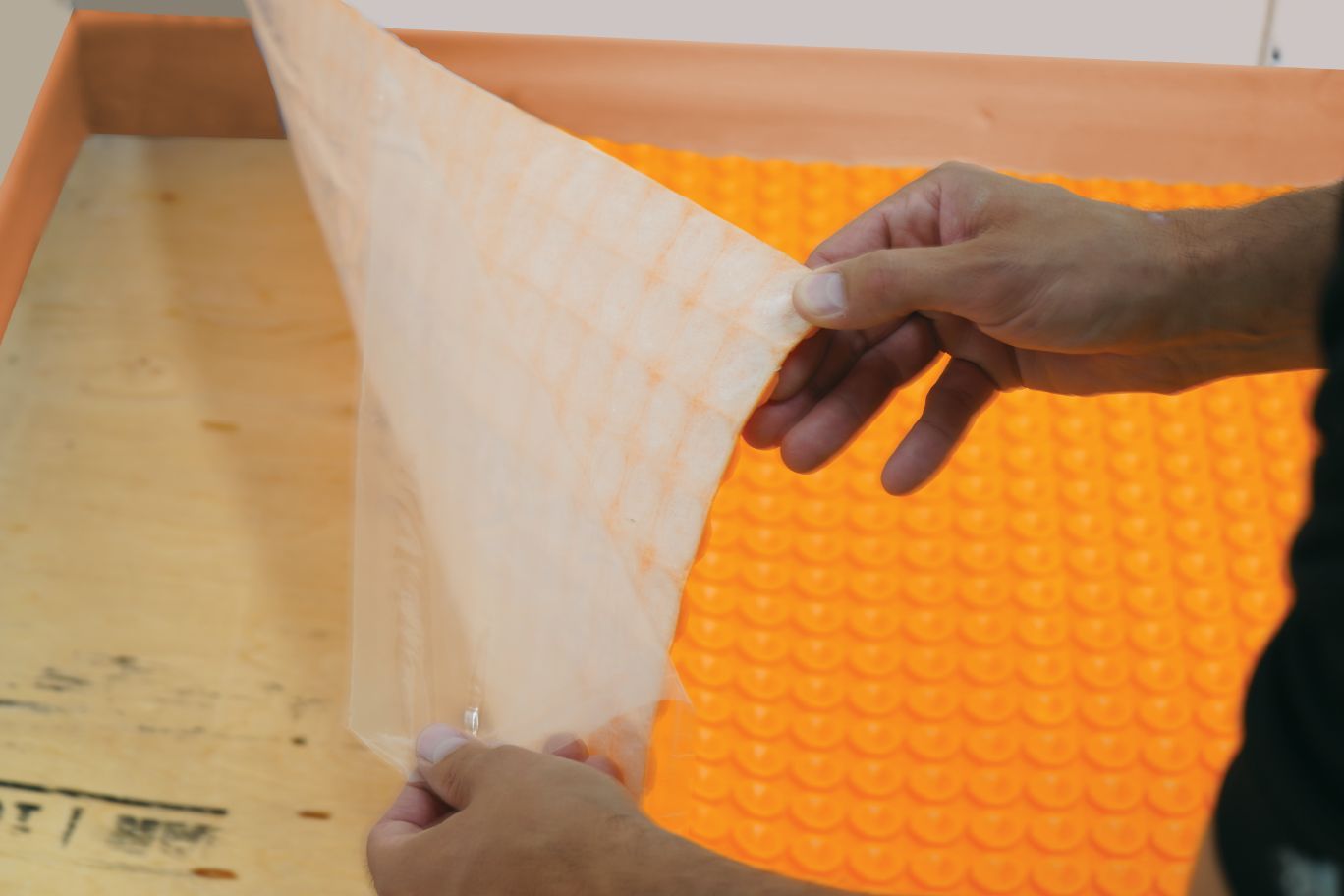

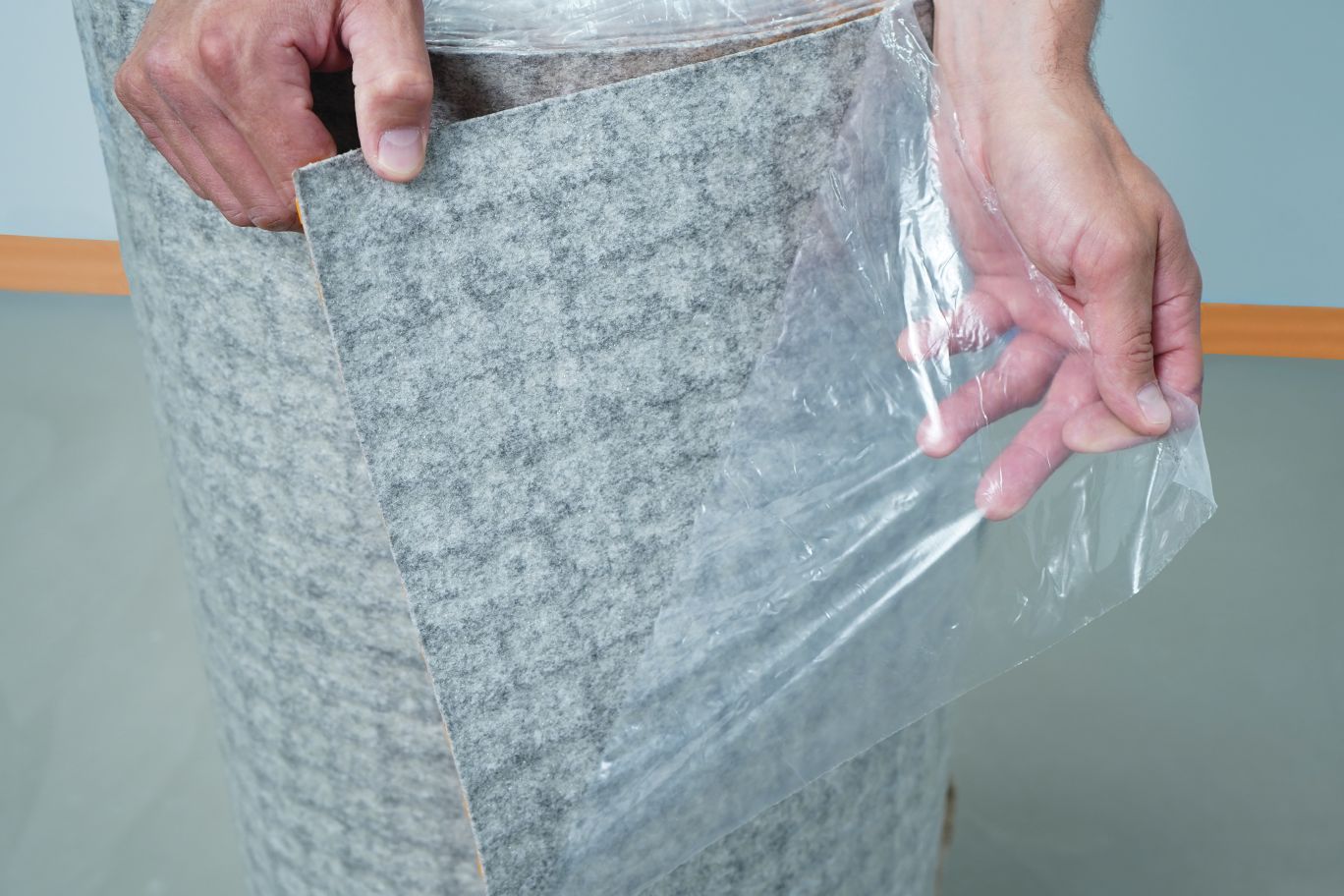

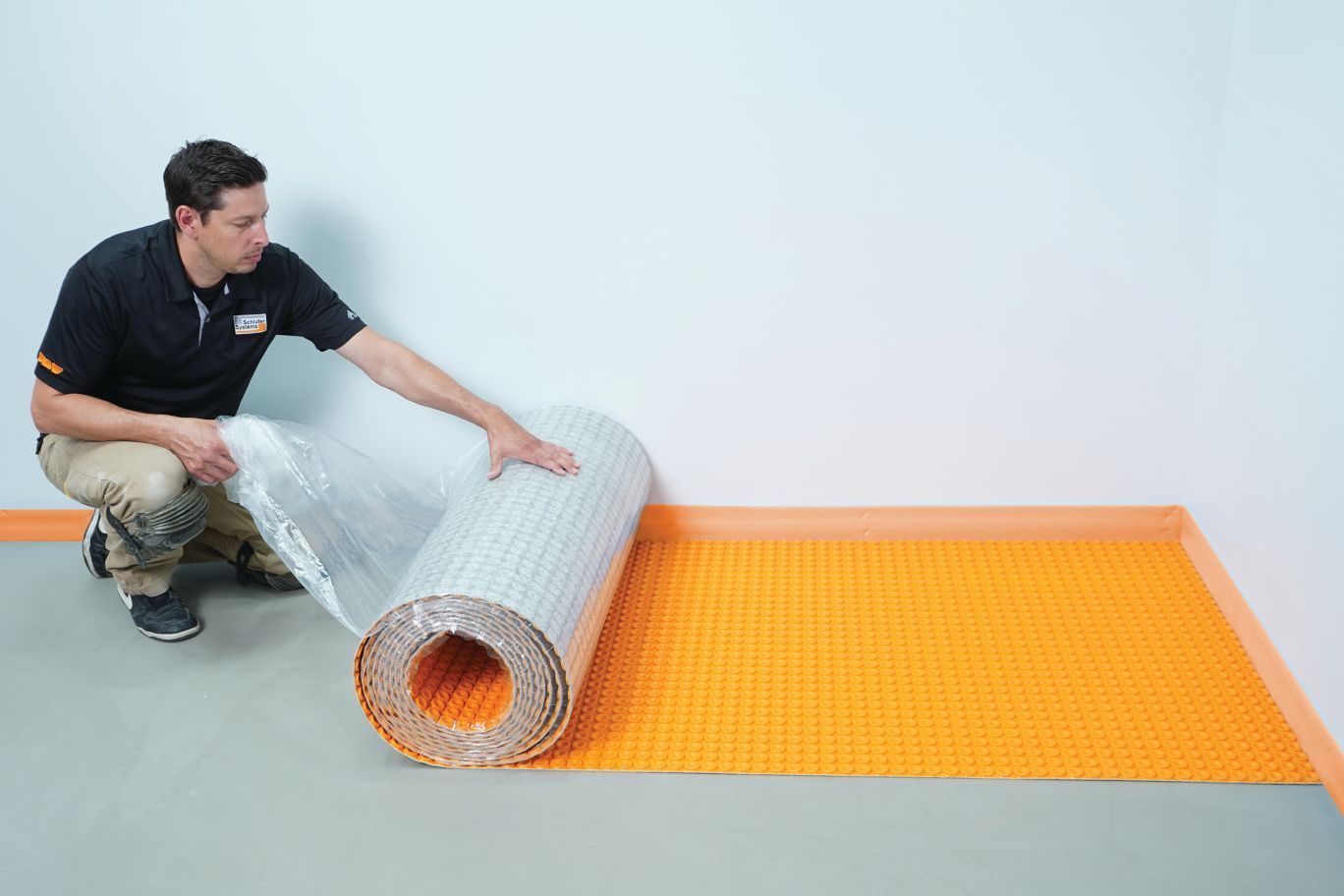

- Simply remove the transparent release film from the fleece side of the membrane to expose the adhesive layer, then embed into the substrate
- No thin-set required, making installation faster and more convenient
- The membrane can be repositioned easily until pressure is applied
- Less mess, minimal cleanup, and fewer tools required

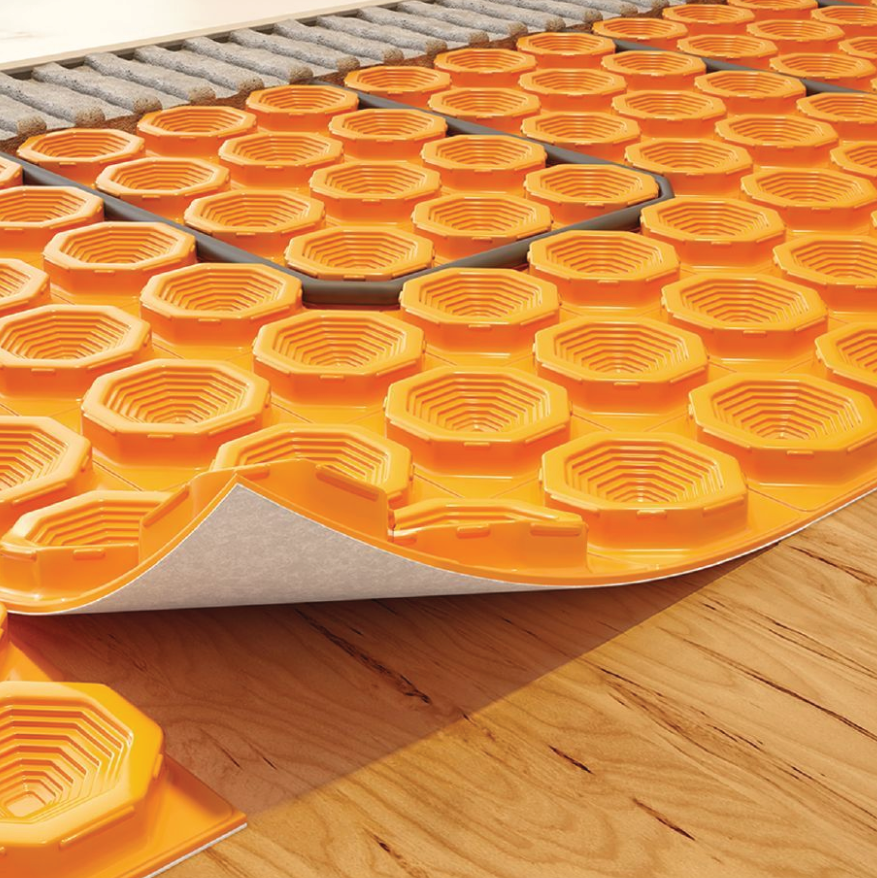

- The stud structure is designed to facilitate easy installation of DITRA-HEAT-HK heating cables
- Nominal 1/4″ (5.5 mm) thickness reduces tile assembly height and minimizes transitions to lower surface coverings
- No need for self-leveling compounds to encapsulate cables into the membrane

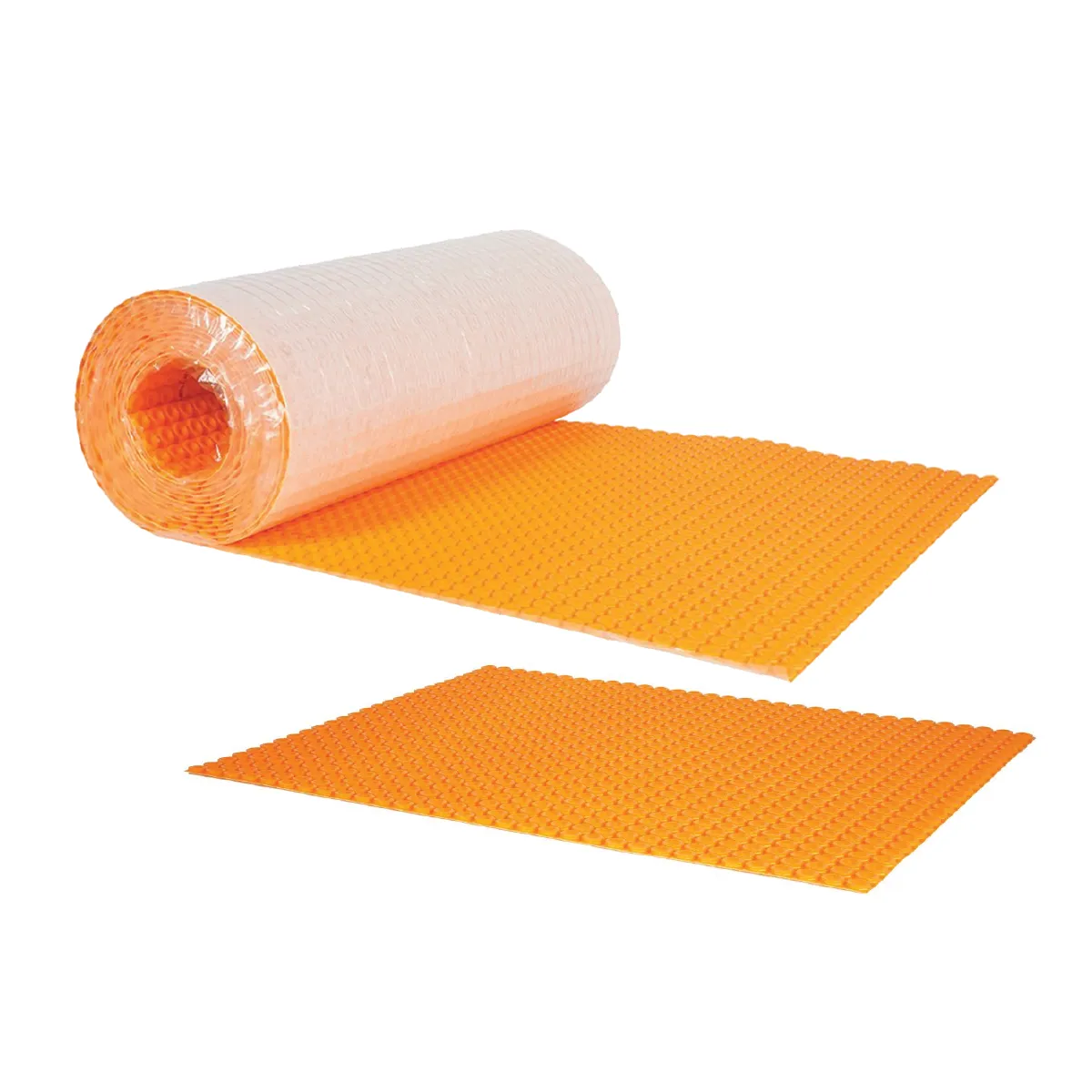

- Available in rolls or sheets to suit various room sizes
- For applications requiring ANSI A118.10 compliance, consider the thin-set versions of DITRA-HEAT or DITRA-HEAT-DUO, or apply Schluter®-KERDI membrane over DITRA-HEAT-PS or DITRA-HEAT-DUO-PS, which meets ANSI A118.10 standards.
| DITRA-HEAT-PS 512M | DITRA-HEAT-PS 5MA | |
|---|---|---|
| Format | Roll | Sheet |
| Width | 3′ 2-5/8″ | 3′ 2-5/8″ |
| Length | 41′ 10-3/4″ | 2′ 7-3/8″ |
| Area | 134.5 sq. ft. | 8.54 sq. ft. |
| Thickness | 3/16″ (5mm) | 3/16″ (5mm) |
