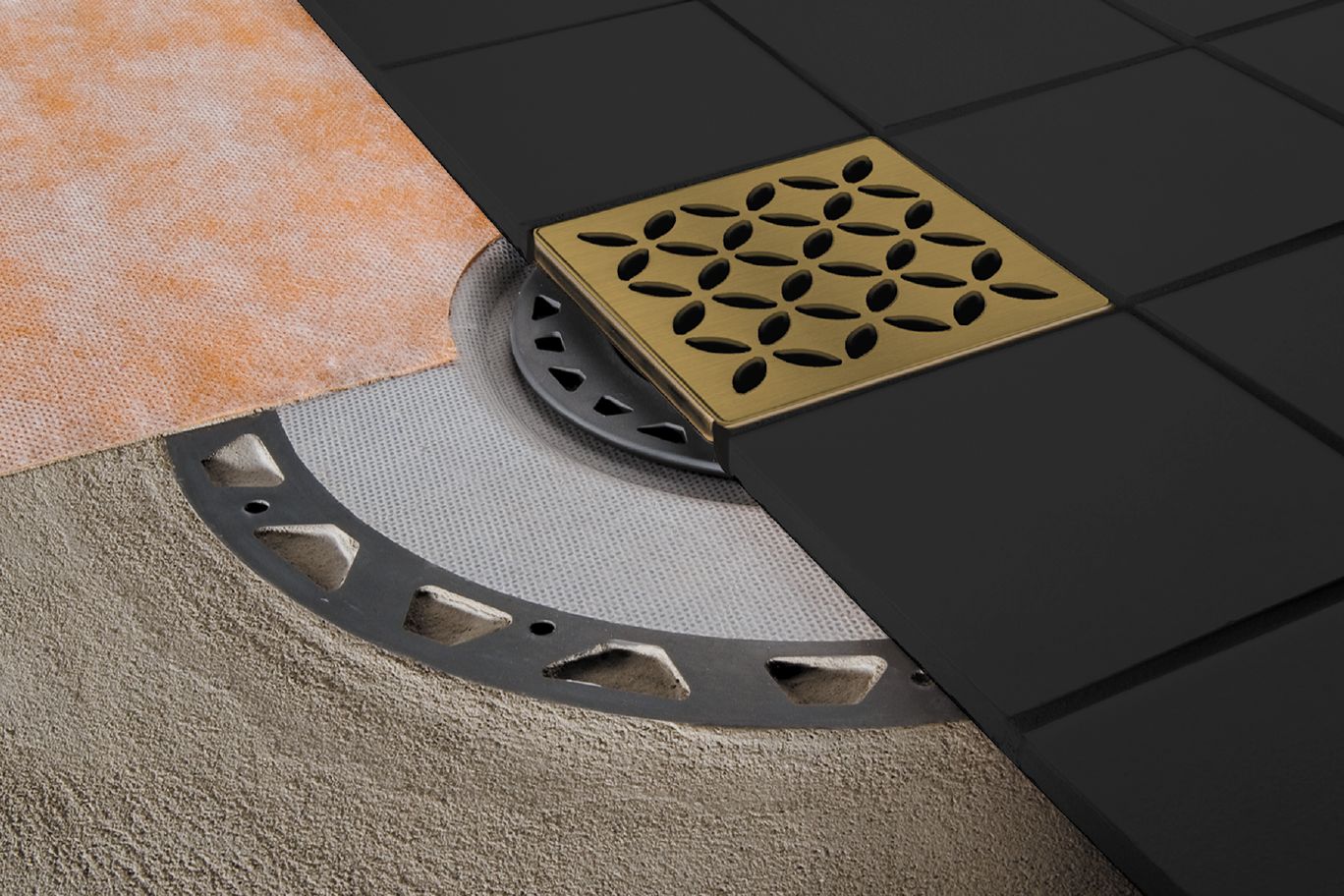

Schluter-KERDI-DRAIN is a floor drain with an integrated bonding flange that provides a large contact area for a secure connection to the KERDI waterproofing membrane at the top of the assembly.
Features:
- New! Now available in matching TRENDLINE finishes: matte black, matte white, stone grey, greige, cream, and bronze
- Available in three stylish designs with KERDI-DRAIN-STYLE: Floral, Curve, and Pure
- Integrated sloped bonding flange available in ABS, PVC, or stainless steel allows for a secure, topical waterproofing connection
- ABS and PVC flange have a 2″ or 3″ outlet
- Stainless steel flange has a 2″ or 3″ no-hub outlet or a 2″ threaded outlet
- Drain grate can be laterally adjusted to fit the layout of the tile grid and leveled to the tiled surface
- Accommodates wide range of tile thicknesses: 1/4″ (6mm) to 1-1/4″ (32 mm)
- Adjustable grate in stainless steel or various finishes of anodized aluminum
- Tamper proof screws and wrench also available
This kit includes:
- 10 drains with integrated bonding flanges
- 40 inside and 20 outside KERDI-KERECK preformed waterproofing corners
- 10 KERDI-SEAL-PS pipe seal 3/4″
- 10 KERDI-SEAL-MV mixing valve seal 4-1/2″
